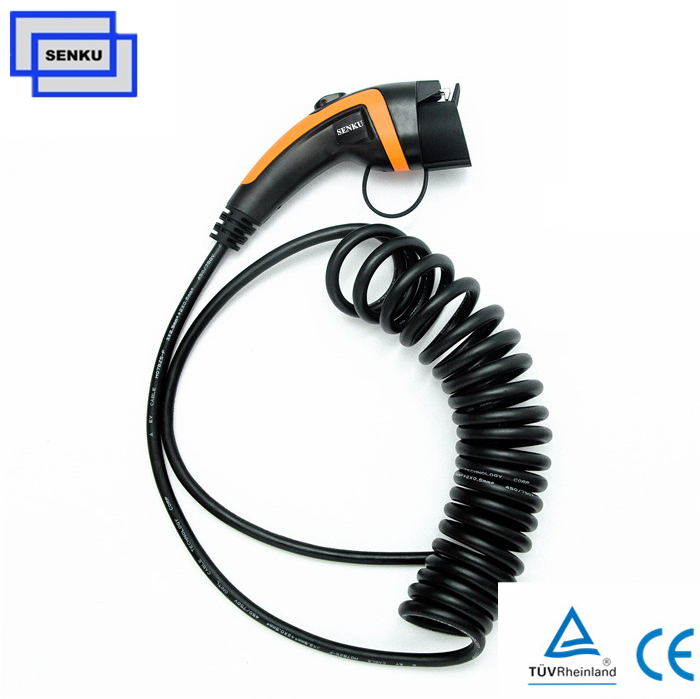

Sae j1772 Type1 Female Ev Plug for Vehicle Side
- Rated Current: 16A / 32A
- Rated Voltage: 120V AC / 250V AC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: The type1 j1772 plug meet the American standardS. the j1772 connector can install on the AC charging stations with cable. it can charging all the type1 electric cars.
Product introduction
Features
1- The type1 j1772 plug with TUV CE RHOS certificates, it is safty and reliable.
2- The type1 j1772 plug with safty pins insulated head design to prevent accidental dirrect contact with staff.
3-The type1 j1772 plug can install on the fast ev charging station as electric outlet to charging the electirc cars.

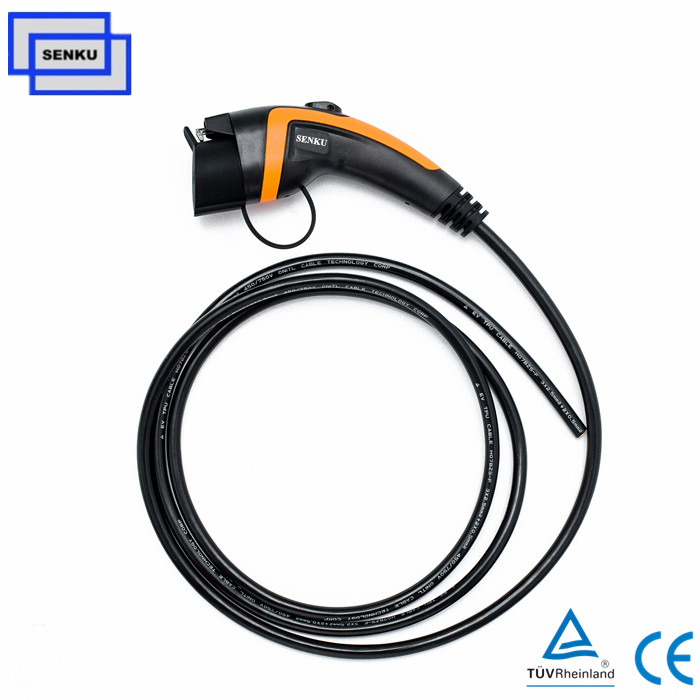

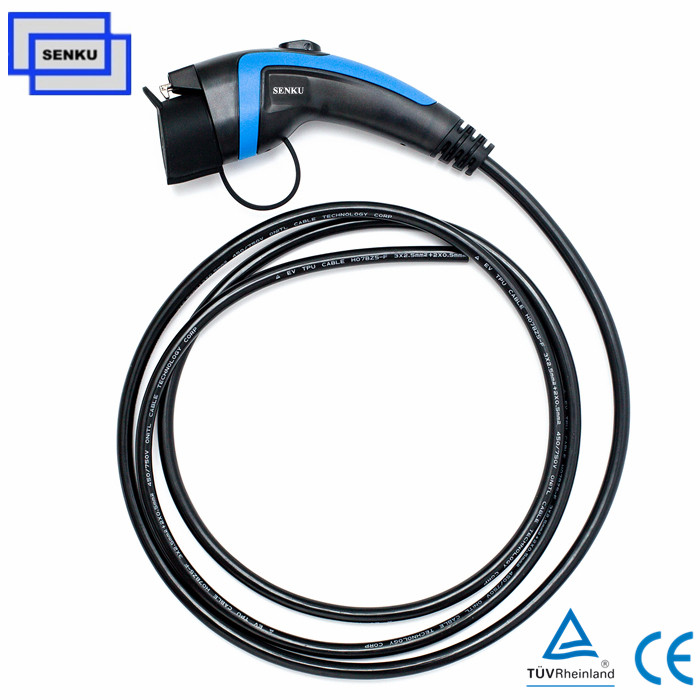

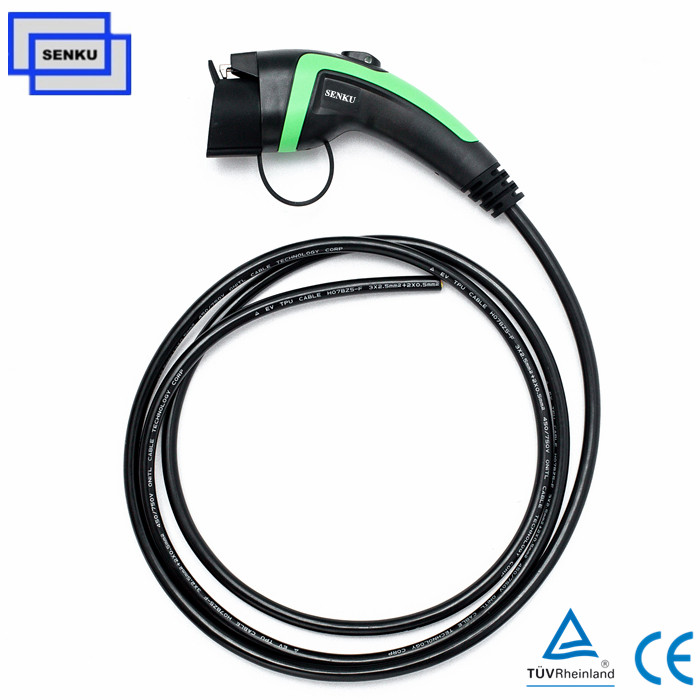

4- Plug with Black / Blue / Green / Orange / White color for option
5-OEM / ODM support
Electric Performance |
|
Rated current |
16A (or 32A) |
Operate Voltage |
250V AC , Single Phase |
Standard |
SAE J1772 Standard Type 1 |
Insulation resistance |
>1000MΩ (DC500V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
2500V |
Conatct Resistance |
0.5 megohm MAX |
Mechanical life |
no-load plug in / plug out > 10000 times ; Impact of external force: can offord 1m drop and 2T vehicle run over pressure |
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 55 |
Model |
Specific |
SAGSAEAC-1-16P |
16A / 240VAC ; 3 × 2.5mm² + 2 × 0.75mm² ; Customized cable length |
SAGSAEAC-1-32P |
32A / 240VAC ; 3× 6mm² + 2 × 0.75mm² ; Customized cable length |
NOTE: Please send the model that you need while sending the inquiry,thanks for your support. Please inform the cable length while sending the inquiry, thanks for support. This plug only sell with cable (because this plug use the riveting process, customer hard to open it), so if you only need the plug, please click here to find the correct product, thanks in advance! |
