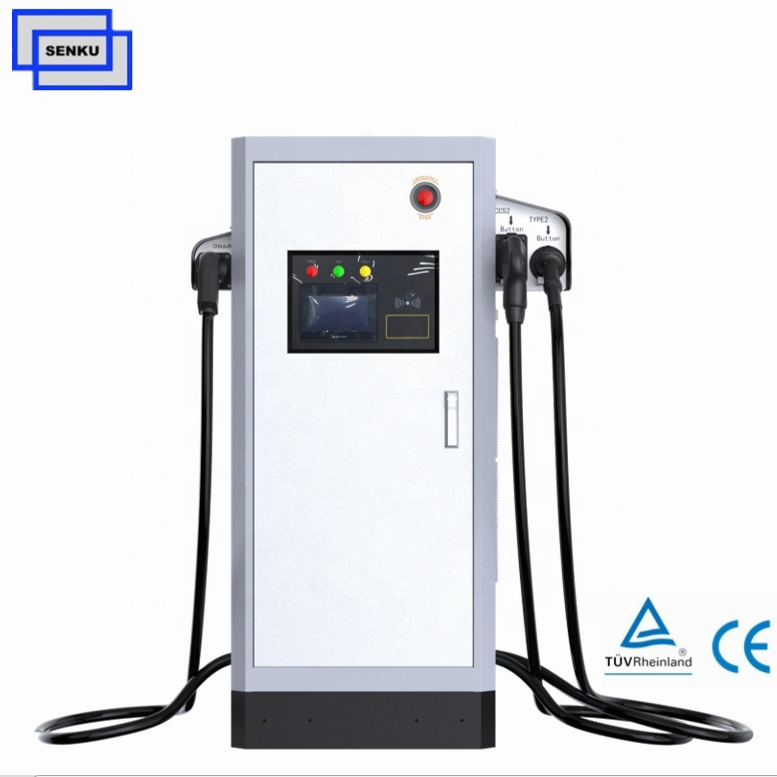

150V-550VDC 60KW CCS Type2 CHAdeMO DC EV Charger
- Rated Voltage: 250V-530VAC
- Rated output voltage(V): 150-550VDC
- Output Power: 0-120kwDC+ 22KW AC (43kw option)
- Output Current(A): 0-200ADC+32A AC(63A option)
- Product description: The 60kw multi device ev charging station with combo ccs2 and CHAdeMo and AC Type2 charging connectors. It can charging 3 different standards electric cars and it save the installation cost. What's mo
Product introduction
AC and DC Part Can Charge at the same time, MAX Charging 2 EVs at the same time
The charging station able to charge all electric vehicles compliant with CHAdeMO charging system and Combined Charging System(CCS) standards and AC Type2 AC Charging system.
The charging station is designed to be installed in street or Highway petrol/service station operators, hotel or restaurant,workplaces or Commercial fleet operators, EV Infrastructure operators and service providers,CCS EV dealers and importers, college or hospital,central commercial palce,car park (both inside and outside)
SEXP120K

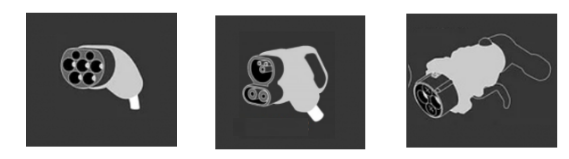

Charging Interface
AC Type 2 Output
Combo-2
CHAdeMo
Input voltage range (V)
AC 400V±10%
AC 400V±10%
AC 400V±10%
Frequency
50Hz-60Hz
50Hz-60Hz
50Hz -60Hz
Voltage Type
3 Phase 3P + N + PE
3 Phase 3P + N + PE
3 Phase 3P + N + PE
Rated output voltage(V)
400V±10%
150-550V DC
150-550V DC
Rated output Power
22kw / 43kw option
60kw@125A
60kw@125A
Output current (A)
32A / 63 A (AC) option
Efficiency
99%
95%
95%
Connection standard
EN 61851-1:2010
ISO15118 / DIN70121
CHAdeMO1.0
Connector Type
IEC 62196 Typ 2
Combo Typ 2
CHAdeMO / JEVS G104
Power factor (full load)
≥0.99
≥0.99
≥0.99
RFID-System
YES
HMI
Glare-free 7-inch touch screen,Display of the charging process
Communication Protocol
OCPP 1.6 J
Networking
Ethernet (standard), 3G/4G (optional)
Electric meter
DC meter+ MID certificated AC meter
Operating temperature
-20 ºC ~ +70℃ (full output under 50℃, power derating 5%/℃ above 50℃)
Protection Level
IP54 / IK08
Operating noise (dBA)
≤65dBA
Conformity and safety
CE / TR25
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; RCD protection
