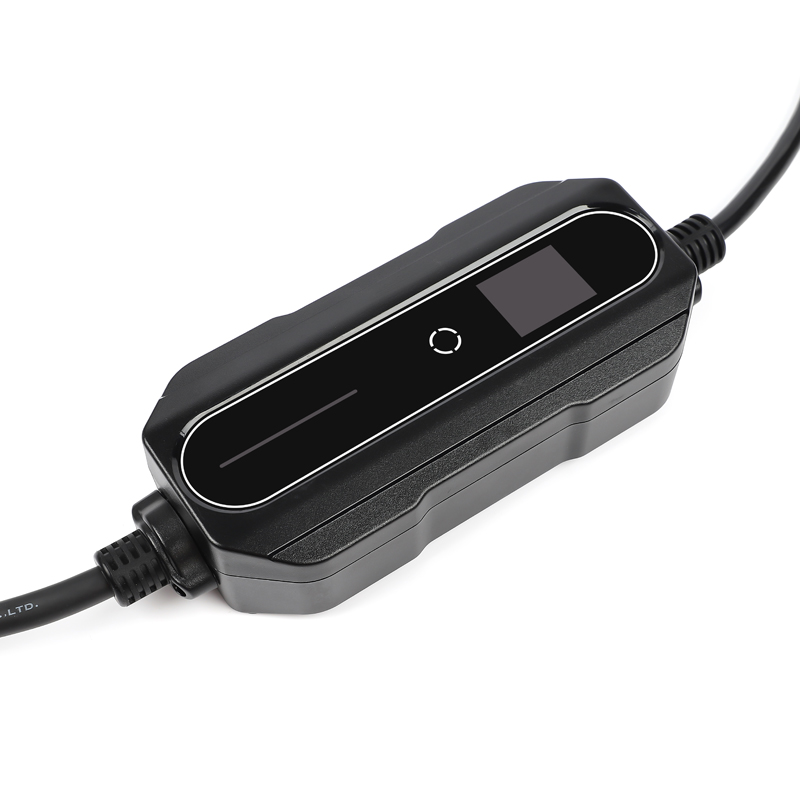

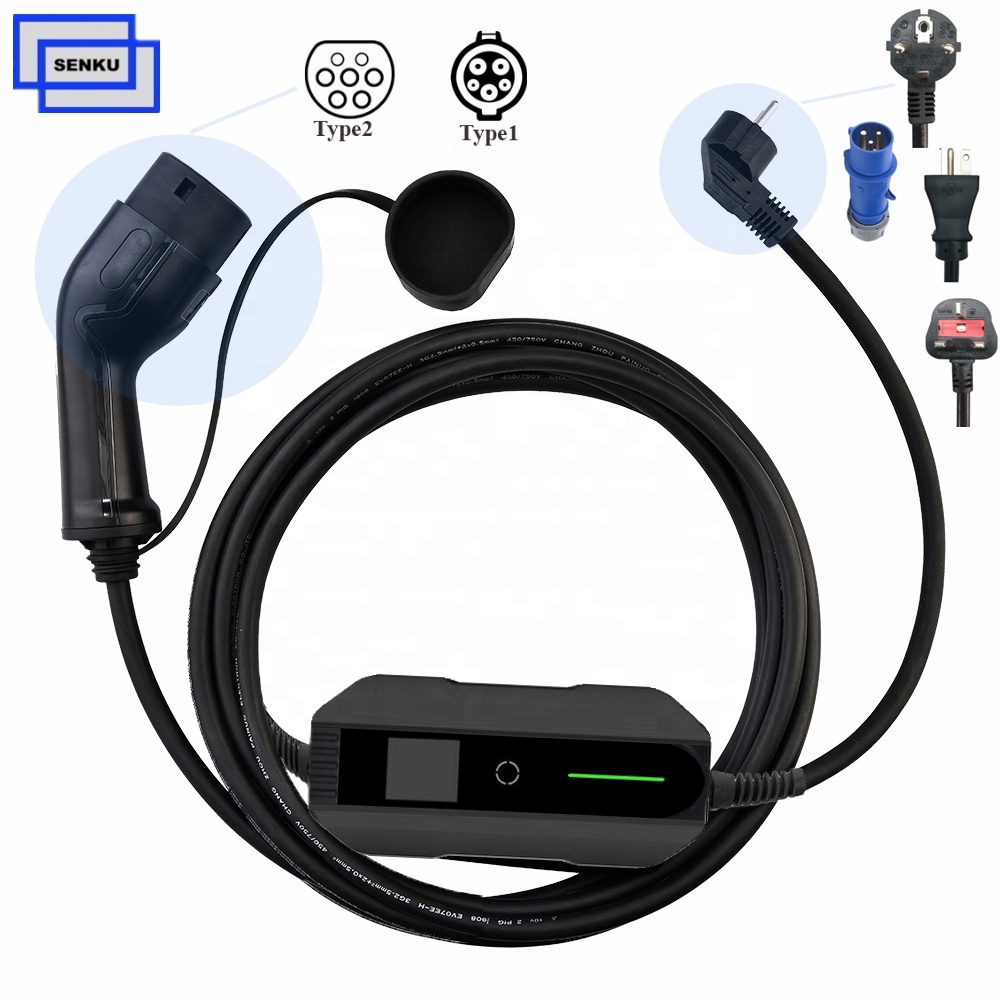

Type2 32A 10A 16A 20A 24A 32A Portable EV Charger
- Rated current: 32A (10A 16A 20A 24A 32A adjustable)
- Rated voltage: 110v-240V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 66

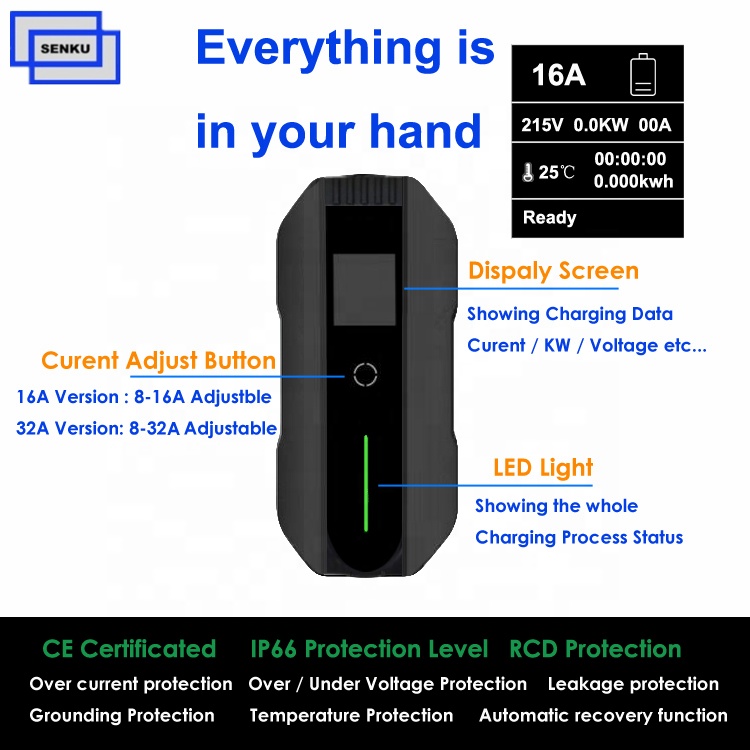

- Product description: SENKU Current Adjustable 32A ev charger for EU market IEC 62196 standard type 2 electric cars. The charger output current can change between 10A 16A 20A 24A 32A by press the button on the control box.
Product introduction
Features
1- The portable electric car charger can charge almost all the EU standard type2 electric vehicles., such as BMW i3...
2- This car charger meet the CE standard, it is a safety and reliable option.
3- With this charger, you do not need to install on the wall, you can put the charger in your electric vehicle and charging your EVs when travelling.
4- Current Adjust Range: 10A / 16A / 20A / 24A / 32A, can charging in different current home power supply socket.
Basic Data
Portable electric car charger Electric Performance. |
|
Rated current |
32A (8A 12A 24A 32A current adjustable) |
Rated voltage |
240V AC |
Charging Plug |

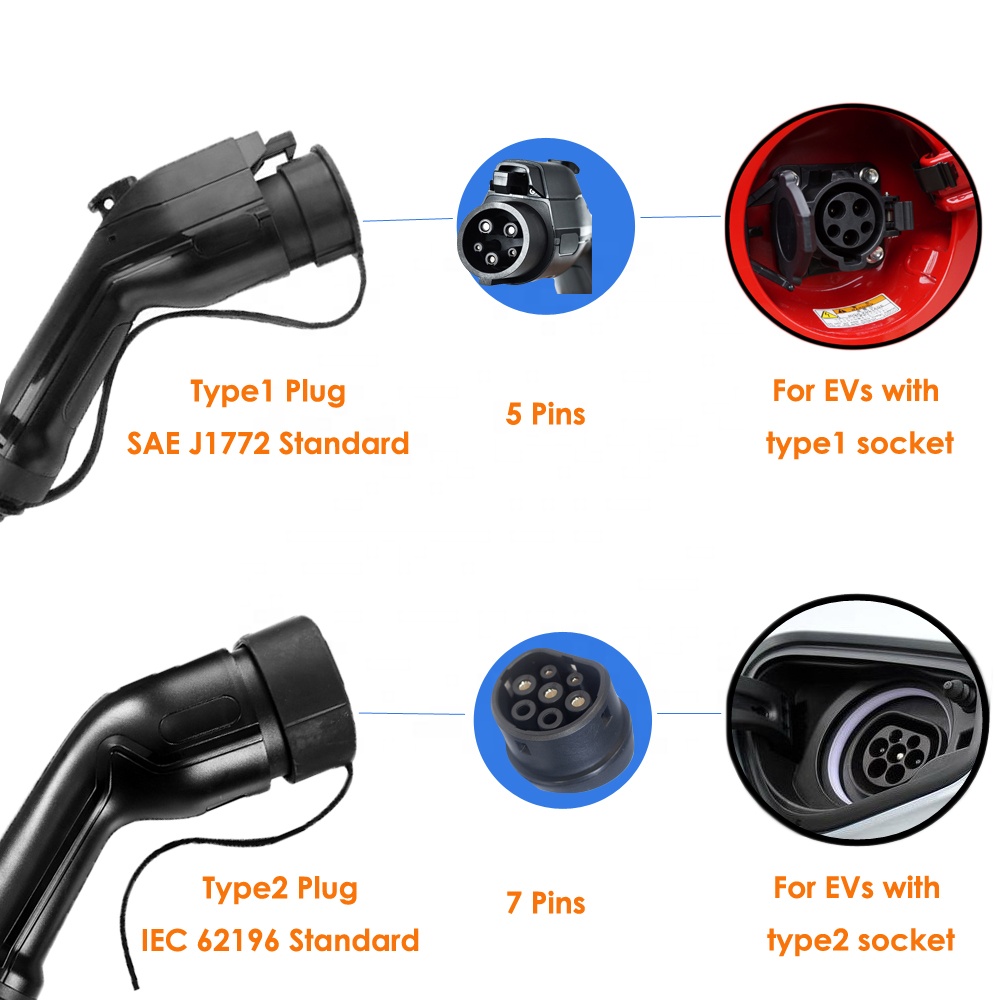

IEC 62196 Standard Type2 Plug |
Insulation resistance |
>1000MΩ (DC500V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
2000V |
Mechanical life |
no-load plug in / plug out > 10000 times;can afford 1m drop test and 2T vehicle run over pressure |
Materia |
Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 66 |
Protection |
RCD TypeA Leakage (RCD TypeB for option); Over-voltage;Under-voltage;Overload protection (self-checking recover), Over temperature, Grounding, Lightning and Flame-retardant protections |
More details about this Portable Electric Car Charger please contact our sale team, Thank you!
