> AC / DC On Board Charger

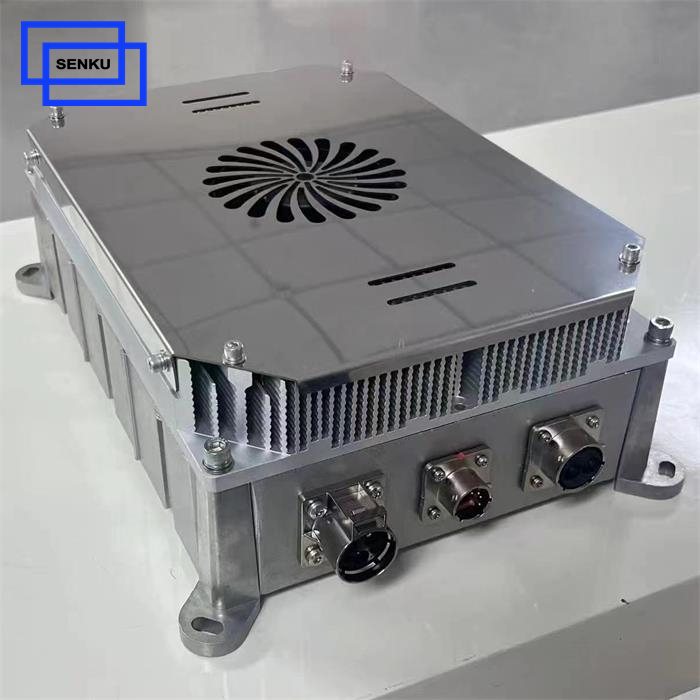

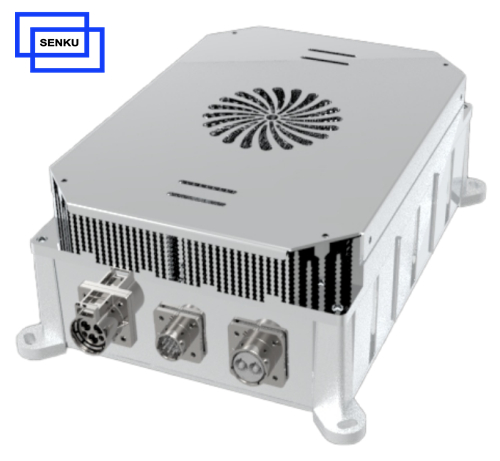

3.3KW 540VDC 6A On Board Charger
- Rated Input Voltage: 95V-265V AC /16A
- Rated output voltage(V): 170-650V DC
- Rated output voltage: 540V DC
- Output Current: 6A
- Product description: Senku 3.3KW 540V DC output lithium on board charger was specially designed for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. T
Product introduction
Features
·Fully Sealed, Enforce air Cooling/Liquid Cooling（Module Optional）
·Reliable working under -35℃- +85℃
·Internal temperature sensor
·Shut off inside temperature over 90°C
·IP67 Protection Level
·Working well in immersion shortly
Basic Data
Specification
Model
3.3KW 540V 6A
AC Nominal Input
Phases/ Lines
1-phase;Single Phase
Input Voltage/Current
95V - 265V AC / 16A
Frequency
45Hz-60Hz
DC Nominal Output
Output Mode
CC / CV
Output Power
3300W @ 220VAC ; 1600W@110VAC
Output Voltage
170V - 650V DC (Rated 540V)
Output Current
6A
CV Accuracy
±1%
CC Accuracy
±2%
Ripple Voltage Coefficient
0.05
Output Efficiency
>93% (Full loading)
Low Voltage Output
Output Mode
CV
Output Voltage
13.8V/27.6V
CV Accuracy
±1%
Nominal Current
5A
Max Current
5.5A±0.5A
CC Accuracy ±2%
Ripple Voltage Coefficient
0.01
Communication
Can Communication
Optional
Baud Rate
125Kbps、250Kbps、500Kbps
Terminal Resistance
NO
Security Protection
Multi Protection
Input Over-voltage Protection; Input Under-voltage Protection; Output Over-voltage Protection; Output Under-voltage Protection; Output Over-current Protection; Over-temperature Protection; Short-circuit Protection; Battery Reverse Connect Protection; Ground Protection; CAN communication Protection; Power-off Protection
IP Level
IP67
MTBF
150,000 hours
Dimension & Weight
239*133*125 (Air Cooling) / 239*135*89 (liquid Cooling)
Warranty
1 years
Tags: on-board charger, 3.3kw on board charger, manufacturers
