> Mode3 Ev Charging Cable

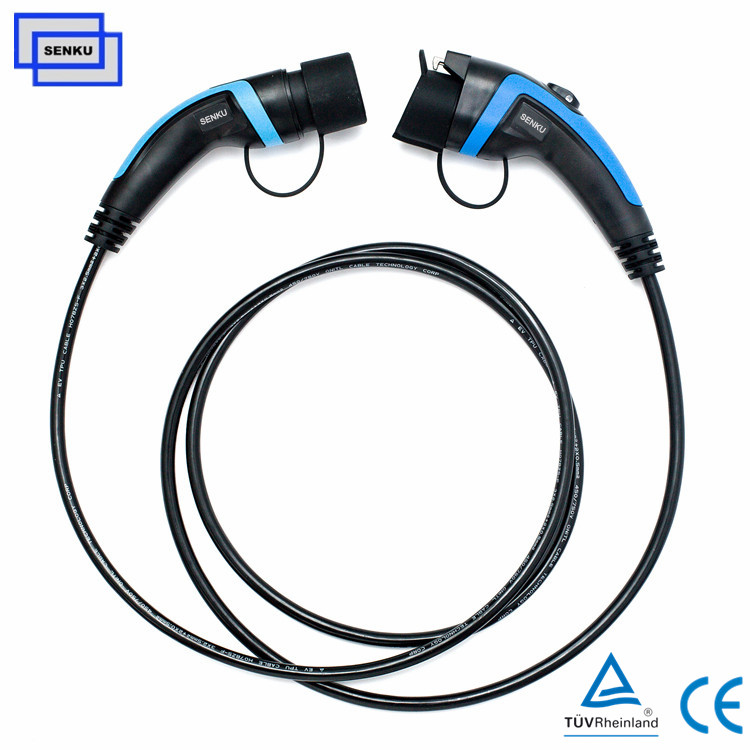

1 phase 16A Type 1 to Type 2 Mode3 Cable Charger
- Rated current: 16A
- Rated voltage: 250V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 55( working condition)
- Product description: The mode3 ice 62196 to Sae j1772 cable charger can use with the home or pucblic mode3 socket type ev charging station, then you can charge your American standard EVs on the EU standard charging statio
Product introduction
Features
1- High quality with TUV CE certification.
The ev mode3 type2 to type1 j1772 cable meet the SAE J1772-2012 and IEC 62196-2 2016 2 IIe standard, Type1 onnectors and charging cable all TUV CE certificated.
2- Beautiful Appearance
We, senku machinery Type1 and Type2 charging connector with nice design charging plugs, totally no screw design, easy to handle.
3- Easy to use.
The type2 to type1 ev j1772 charging cable can charging almost all type2 electric cars.
4-Longer Service Life.
XLPO for cable insulation rolonging the againg resistance ife span, TPU sheath improved he bending life and wear esistance of cable.
5-Customized Service Support
Charging connector with a Variety color for option, and customized color support.
Brand logo Customized service support.
|
Electric Performance |
TYPE2 to TYPE1 16A Single Phase |
|
Rated current |
16A |
|
Rated voltage |
250V AC |
|
Charging Plug |

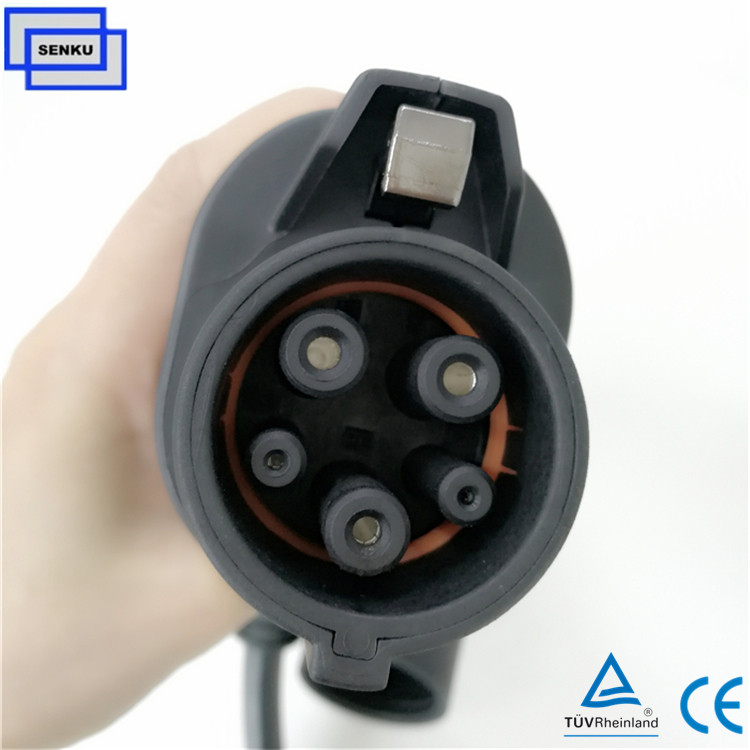

IEC 62196 Standard Type2 Male and FSAE j1772 Type1 Female |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Terminal temperature rise. |
<50K |
|
Withstand Voltage |
2500V |
|
Mechanical life |
no-load plug in / plug out > 10000 times; Can afford 1m drop test and 2T vehicle run over pressure |
|
Material |
Case Material: Thermoplasti, Flame retardant grade UL94-0; Pin: Cooper alloy , Sliver plating |
|
Plug Color for option |
Black/ Green/Orange/Blue/White or Customized |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP55 (Working Condition) |
|
Standard |
TUV CE; IEC62196-2 2016 2IIe |
