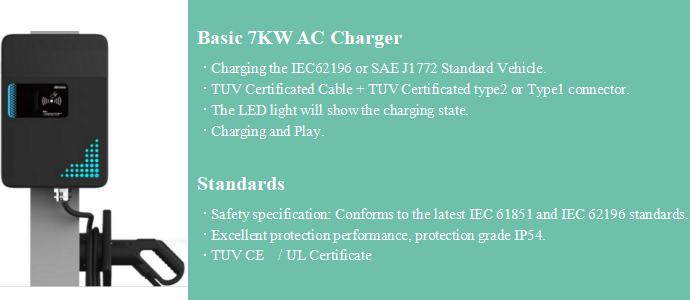

Type2 Basic 7KW 32A charger
- Rated Current: 32A
- Rated Power: 7kw
- Phase: 1 Phase
- IP evel: IP54
- Product description: The 7KW 32A ev charger have IEC 61851 standard. The 7KW ev charger can be install in home,park lot, hotel etc... Just need to Put the charging plug to the electric vehicle then it will start chargin

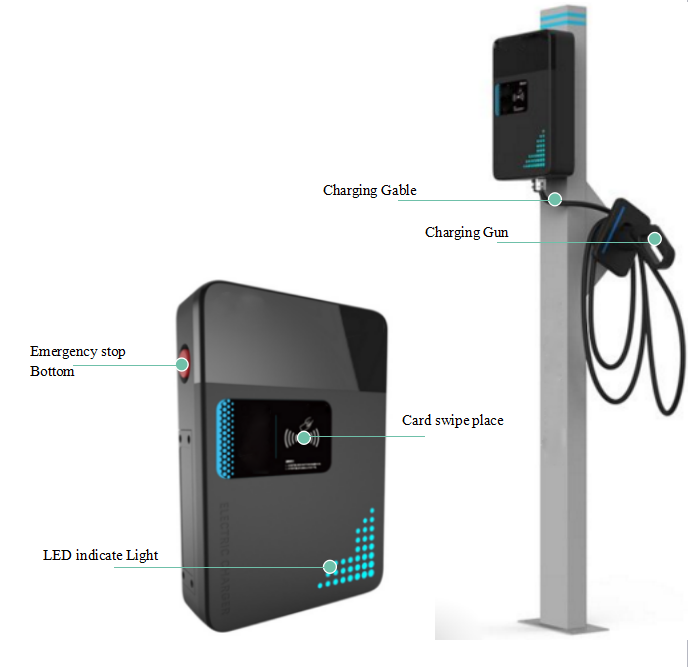

Product introduction
Specification |
Model |
SDH-AC0070XG57-B (EU) |
AC Nominal Input |
Phases/ Lines |
1 phase + neutral+ PE |
Voltage |
230VAC±50% |
|
Frequency |
50Hz |
|
AC Nominal Output |
Voltage |
230VAC±10% |
Current |
32A |
|
Power |
7KW |
|
Structure Design |
Housing Material |
Plastic PC940 |
Front Panel |
Plastic PC940 |
|
Installation Method |
Wall Mounted / Floor-stand |
|
Charging Outlet |
1 charging Plug (Type 2) |
|
Cable Length |
5M cable |
|
LED Indicator |
Green/Yellow/Red |
|
Emergency Stop Button |
Yes |
|
RFID Function |
Yes |
|
RFIDCard |
2pcs Mifare card |
|
Energy Meter |
MID certified Energy Meter |
|
RCD |
Extra RCD TypeA / RCD TypeB option |
|
Environmental Index |
Operating Temperature |
-30~+50°C |
Working Humidity |
5%~95% without condensation |
|
Working Altitude |
<2000M |
|
Protection Grade |
IP54 |
|
Application Site |
Indoor / Outdoor |
|
Cooling Method |
Natural cooling |
|
Security Protection |
Multile Protection |
Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection
|
MTBF |
100,000 hours |
|
Safety Standard |
IEC 61851-1: 2017, IEC 62196-2: 2016 |
|
Warranty |
1 years |
|
Package Information |
Dimension & Weight |
356*221*136MM & 3KG |
Option Parts |
Ground Install |
Install Pile |
