> Wallbox DC Fast Charging Station

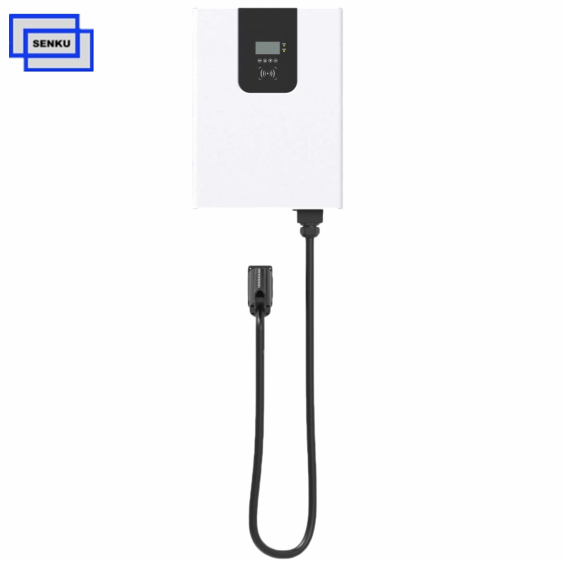

Private Use 20KW Wallbox DC EV Charger
- Rated Voltage: 260V-530VAC
- Rated output voltage(V): 150-1000V
- Output Power: 40kW
- Output Current(A): 0~50A
- Product description: The 20kw wallbox ev charging station bulit in 20kw charging power module, it can configure to Europe Standard Combo CCS2 standard. The 20kw wallbox DC ev charging station is design for private/ Home
Product introduction
Features
1- The 20kw DC ev charging station meets the Combo CCS2 for new energy electric vehicles.2- HMI : With LCD Dispaly screen to show real time charging data.
3- The charger is designed with a modern and light design, easy to install.
4- Perfect waterproof and dustproof design ( IP 54 ) to meet the various indoor and outdoor installastion environment, such as high tor low emperature, heavy rain and high humidity...
5-Applicable for Design for Home / Fleet / Parking Facilities and other places.
Install method option

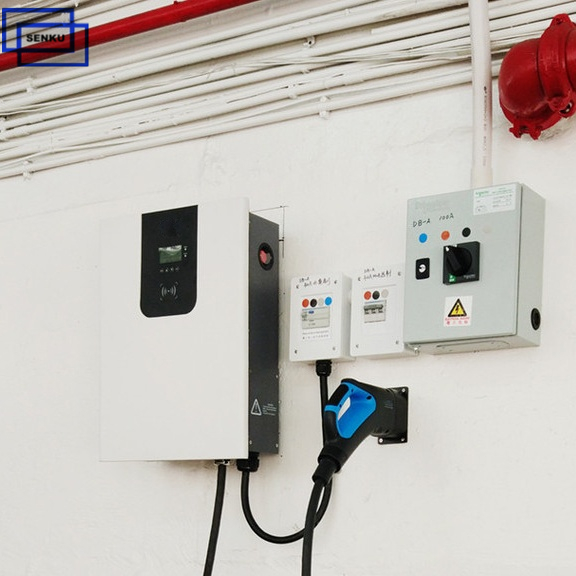

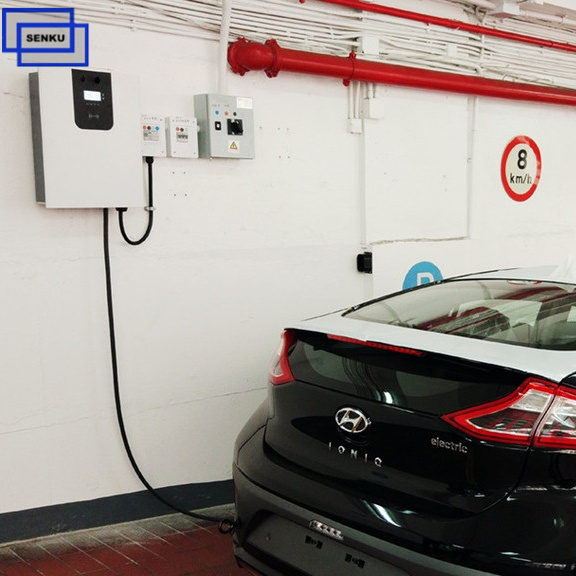

Install on wall or install on the ground (with the help of the stand pile)
|
Specification |
Model |
SDC020K-FE-01 |
|
AC Nominal Input |
Phases/ Lines |
3-phase (without neutral supported) |
|
Input Voltage |
400V AC ±10% |
|
|
Frequency |
50Hz-60Hz |
|
|
DC Nominal Output |
DC Voltage Accuracy |
<±0.5 |
|
Output Voltage |
20KW 150 - 550VDC @ 0~50A or 20KW 150 - 750V DC @ 0 - 33A |
|
|
Output Efficiency |
>94% (Rated input and output) |
|
|
Electrical Specification |
LED Indicator |
Yes |
|
LCD Touch |
Yes |
|
|
Emergency Stop Button |
Yes (Red Color) |
|
|
RFID Function |
Yes (Authorized RFID cards can charged only) |
|
|
Cable Length |
Como CCS2 Connector with 4M Cable |
|
|
Energy Meter |
DC energy meter |
|
|
Application scenes |
Commercial / Public charging (Wall-mount / Floor-stand) |
|
|
Environmental Index |
Operating Temperature |
-30~+50°C |
|
Working Humidity |
5%~95% without condensation |
|
|
Working Altitude |
<2000M |
|
|
Protection Grade |
IP54 / IK10 |
|
|
Application Site |
Indoor/Outdoor |
|
|
Cooling Method |
Fan cooling |
|
|
Security Protection |
Multi le Protection |
OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring |
|
MTBF |
100,000 hours |
|
|
Certificate Compliance |
IEC 61851-1:2017, IEC 61851-23:2014
|
|
|
Warranty |
1 years |
|
|
Dimension |
Dimension & Weight |
426*163*566 mm & 30KG |
|
Optional Parts |
Install |
Floor-stand Pile |
