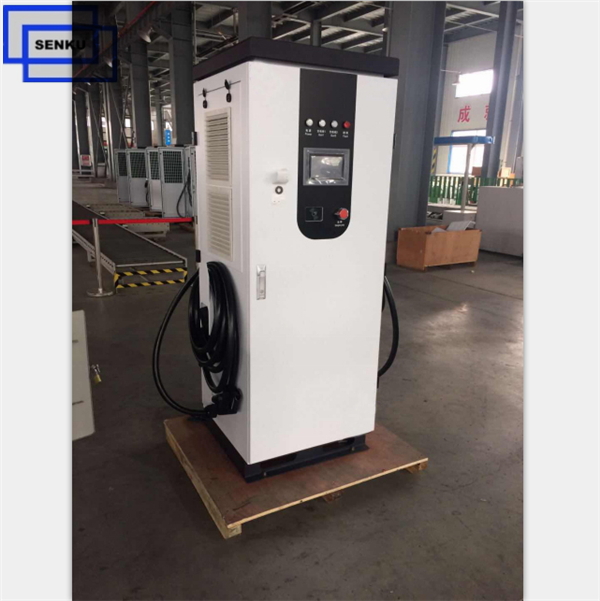

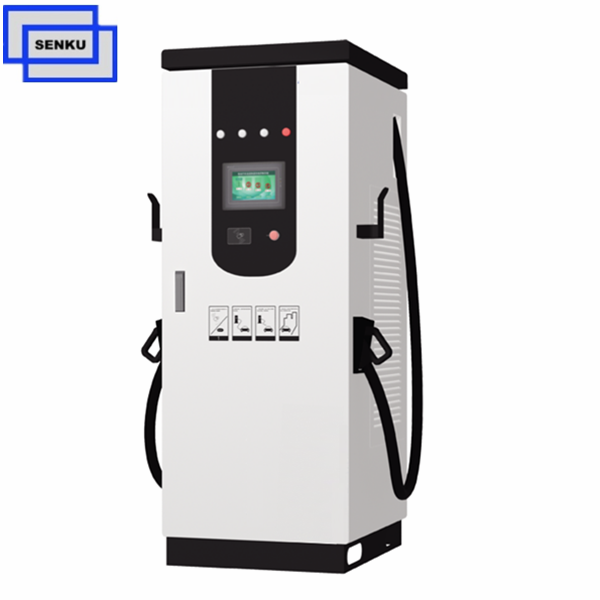

45KW CHAdeMo DC EV Charger
- Rated Voltage: AC 260V-530V
- Rated output voltage(V): 150-500V
- Output Power: 45kW
- Output Current(A): 0~100A
- Product description: 1- The 45KW fast chargers meet the Janpan CHAdeMo charging standards for new energy vehicles. 2-Offering 150-500V wide output voltage range, can meet all the ChAdeMo electric car voltage requirements
Product introduction
1- The 45KW electric car recharge station with intelligent plug power output, it can automatic adjust the output voltage and power according to the electric car demand.
2-Applicable for large public stations, plant charging area, expressway service areas, electric car charging stations and other places.
Charging Guns: 1/2/Option
OCPP: Support OCPP 1.6
Key Parameters
Electric Performance.
Line Voltage
260VAC-530VAC
Frequency
50Hz ±10%
Voltage Type
3 Phase 3P + N + PE
Rated output voltage(V)
150-500VDC (150V-750V / 150V-1000V for Option)
Rated output Power
45KW
Output current (A)
0 -100A
Efficiency
≥94%
Connection standard
CHAdeMo
Cable Length
4m (Standard); Or Customized
Charging Plug Quantity
1 or 2
Power factor (full load)
≥0.99
Payment Method
RFID Card / APP / Credit Card (Option)
HMI
Glare-free 7-inch touch screen,Display of the charging process
Protection
IP65
Communication Protocol
OCPP 1.6
Easy to connected to customer back-end, to achieve remote control and mangement
Communication btw Charger&Vehicle
PLC
Communication btw Charger& Back-end
Ethernet (Standard); 3G/4G/WIFI for option
Standards
IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE (EV Charging Rectifier)
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
