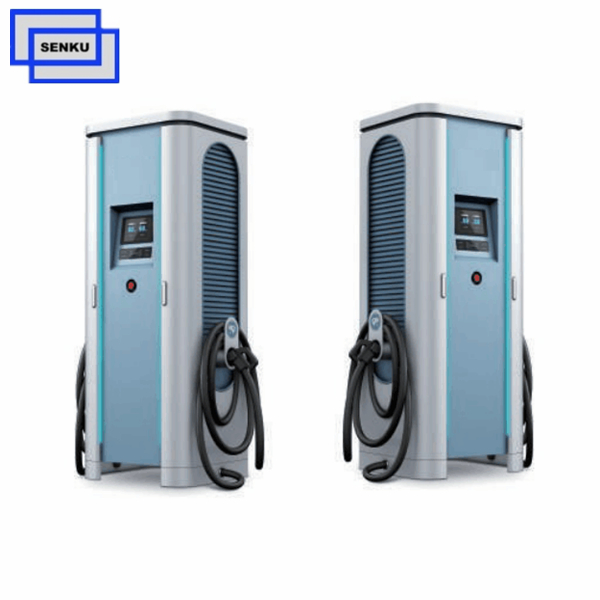

120KW CS2 DC EV Charger
- Rated Voltage: 260V-530VAC
- Rated output voltage(V): 150-500V
- Output Power: 90kW
- Output Current(A): 0~170A
- Product description: 1-The dc charging station support the newest OCPP1.6 protocol.Easy connected to customer back-end and APP, realize remote control,charging,management. 2-The dc charging station with wide input volta
Product introduction
1- HMI : With 7''LCD large touch screen for user interaction and advertising display.
2- The dc charging station with 2 charging guns, intelligent charging two electric vehicles at the same time.
3- Fast Charging, charging 5 mins, run 120 mins.
4- The 120kw dc charging station accept Custom paint ans branding.
5- Perfect waterproof and dustproof design to meet the various environment, such as high tor low emperature, heavy rain and high humidity...
6-Applicable for public charging stations, company charging place, expressway service areas, hospital and other places.
Charging Guns: 1/2 Option
OCPP: Support OCPP 1.6
Key Parameters
Electric Performance.
Line Voltage
AC 260V-530V
Frequency
50Hz / 60Hz
Voltage Type
3 Phase
Rated output voltage(V)
150-750VDC (Continuously adjustable) ; (150V-1000V for option)
Rated output Power
120KW
Output current (A)
0 -200A
Efficiency
≥94%
Plug Type
Combo - 2 (CCS2)
Charging Plug Quantity
1or 2 for option
Power factor (full load)
≥0.99
Payment method
RFIC Card / APP / Credit Card (for option)
HMI
Glare-free 7-inch touch screen,Display of the charging process
IP Level
IP54
Payment Method
RFID Card / APP / Credit Card (for option)
Communication Protocol
OCPP 1.6
Communication btw Charger&Vehicle
PLC
Communication btw Charger&Charger
Ethernet (Standard); 3G/4G/WIFI (for Option)
Standards
IEC 62196, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE (ChargingRectifier)
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over- Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
