32A 62196 Type2 Socket for Charging Station Side
- Rated Current: 32A
- Rated Voltage: 250V AC or 415V AC
- Certificate: TUV CE RHOS
- IP Level: IP44
- Product description: The type 2 ev outlet meet the iec 62196 standards. the type 2 ev outlet can install on the type2 standard ev charging stations, end users can use mode3 charging cable to charge the IEC62196 standard e
Product introduction

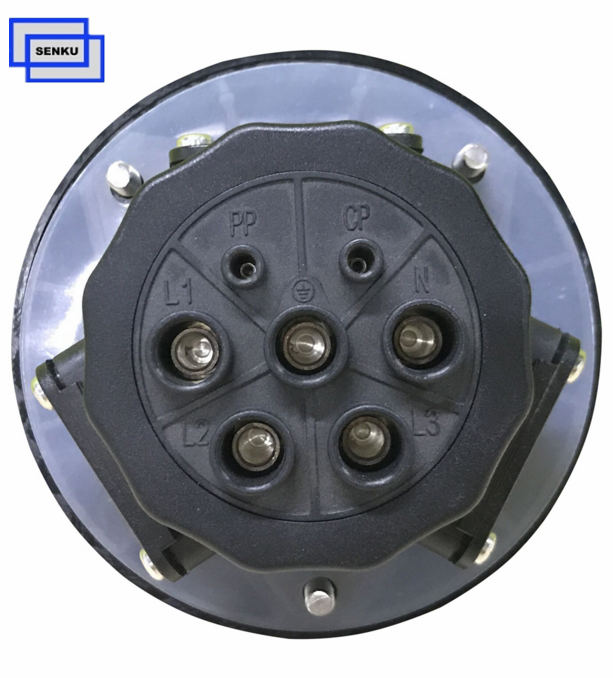

type 2 ev outlet
Features

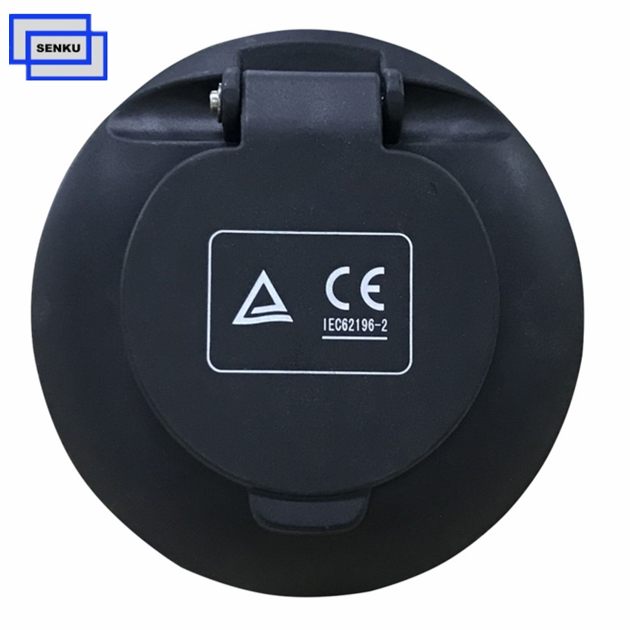

1- The type 2 charging station socket with protection cover, support front installation.
2- The type 2 charging station socket with TUV CE RHOS certificates, it is safty and reliable.
3- The charging station with safty pins insulated head design to prevent accidental dirrect contact with staff.
Basic Data
Electric Performance. |
|
Rated current |
32A |
Rated voltage |
250V AC, Single Phase or 415V AC, Three Phase for option (please note the voltage you need when inquiry) |
Standard |
IEC 62196 Standard Type2 Socket |
Insulation resistance |
>1000MΩ (DC500V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
2000V |
Mechanical life |
no-load plug in / plug out > 10000 times |
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Mechnical Life |
No load plug in / out more than 10000 times |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 44 |
ANY QUESTION PLEASE CONTACT US.
