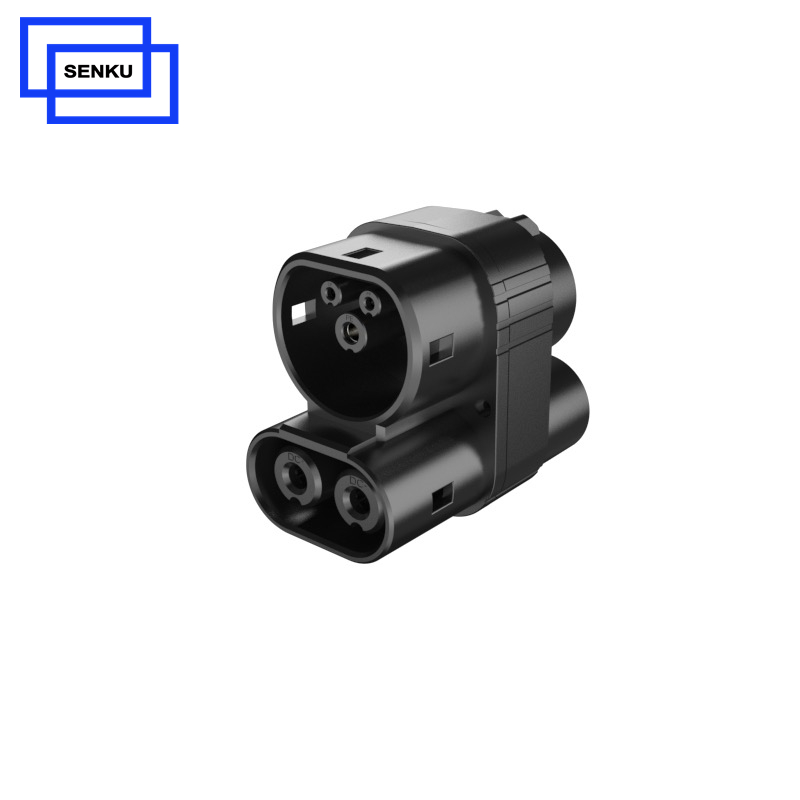

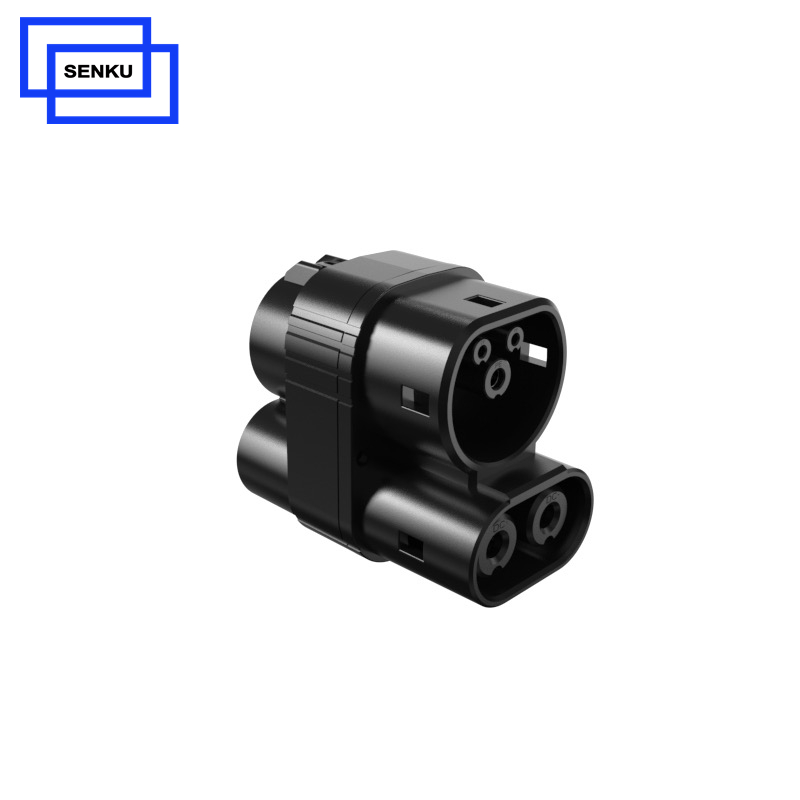

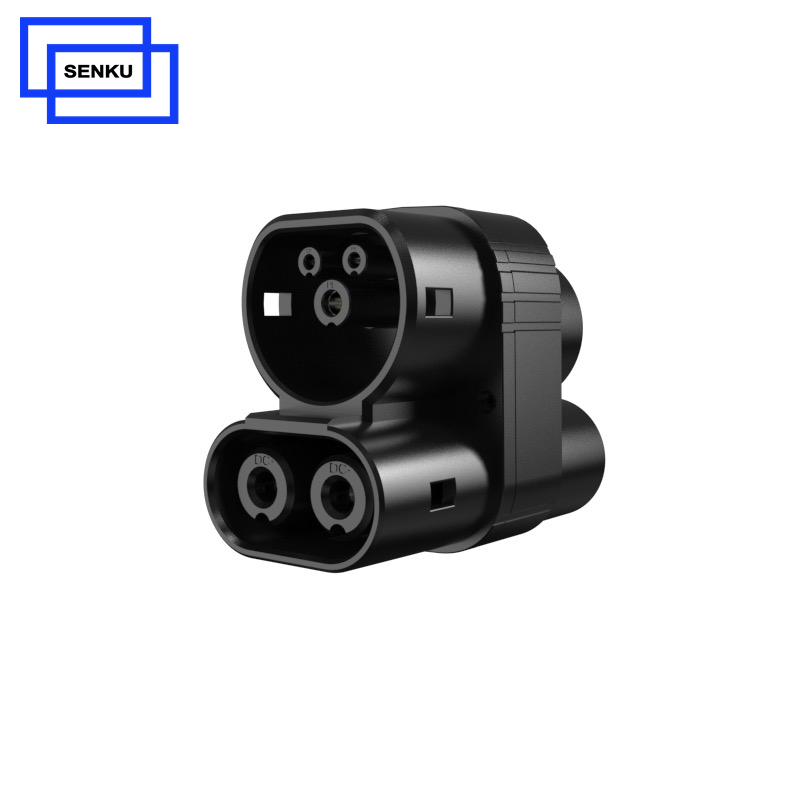

SAE J1772 CCS1 to CCS Combo 2 Adapter
- Rated Current: 150A
- Rated Voltage: 1000V DC
- Certificate: CE
- IP Level: IP54
- Product description: The 150A 1000V ccs adapter use to charge a Europe standard CCS2 electric car on American CCS1 standard EV Fast Charging Station.
Product introduction
SAE J1772 CCS1 to CCS Combo 2 Adapter
Technical Data
Model |
SAE J1772 CCS1 to CCS Combo 2 Adapter |
Input Features |
|
Rated Voltage |
1000V DC |
Rated Current | 150A |
Case material |
Thermoplastic |
Terminal |
Copper alloy,silver plating |
Flame retardant grade |
UL94 V-0 |
Coupled Force |
45N<F<100N |
Impact of External Force |
1M drop and 2T run over |
Operating Temperature |
-30℃~ +50℃ |
Cable Length |
No visual cable design |
Application |
Charging a Combo CCS2 EV on a Combo CCS1 EVSE |
Environment Features |
|
Working Temperature(℃) |
-30 ~ +50℃ |
Relative Humidity |
5~95% no condensation |
Safety | |
Certification |
CE |

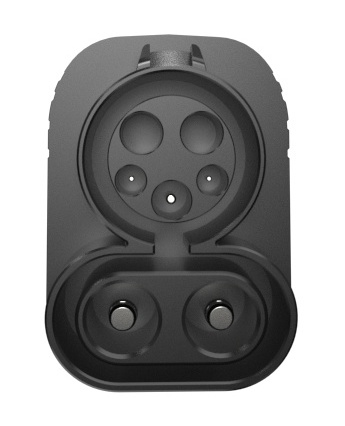

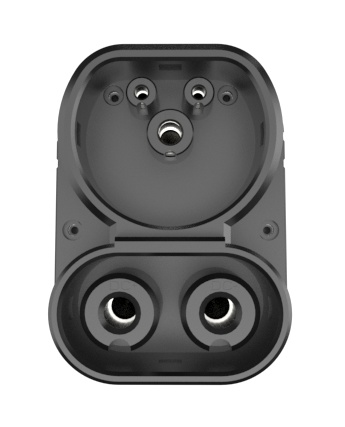

Plug into EV Charging Station Side Plug into Electric Car side
