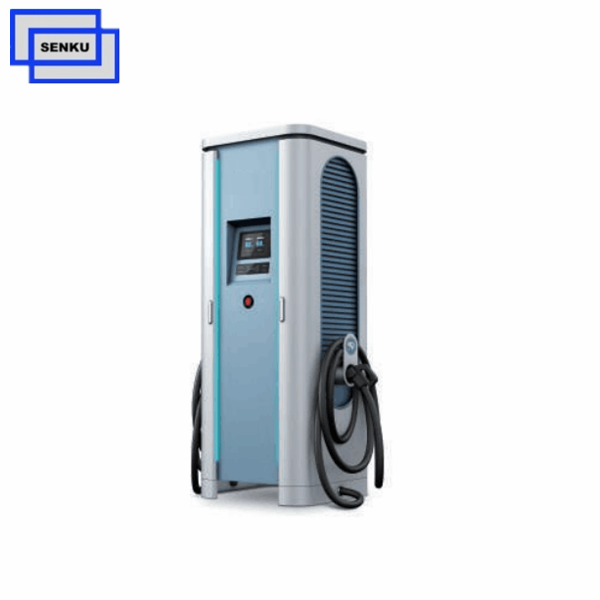

75KW CCS2 Fast EV Charger
- Rated Voltage: AC380V±10%
- Rated output voltage(V): 250-750V
- Output Power: 75kW
- Output Current(A): 0~150A
- Product description: 1- TUV CE Certificated. 2- With two charging connectors, and the two charging connector can charging one vehicle at the same time and it also can charging two vehicles at same time, Support cycle Cha
Product introduction
1. The 75kw CCS2 dc fast charging stations with Full LCD touch screen display mode of operation. Displays the working status, charging progress, IC card balance and other information for a friendly and intuitive operation.
2. Various payment methods Support third-party payment platform, bank cards, bus cards, mobile payment and other means of payment.
3.The 75kw CCS2 dc fast charging stations with Reliable operating Perfect waterproof and dustproof design to meet the various requirements of outdoor installation. Ensures equipment is able to maintain stable operation in harsh environment such as continuous high temperature, heavy rain and high humidity.
4. Remote monitoring. CCS2 dc fast charging stations Support for Ethernet, 3G / 4G communication interface, to achieve network monitoring of charger operation.
5. Applicable for large electric bus stations, expressway service areas, electric car charging stations and other places.
Charging Guns: 1 or 2 for Option
OCPP: Support OCPP 2.0
Certificate: TUV CE Certificate
Key Parameters
Electric Performance.
Charging Interface
Combo-2
Versatility
EN61851-23 /DIN 70121
Line Voltage
AC 380V±10%
Frequency
50Hz ±10%
Voltage Type
3 Phase 3P + N + PE
Rated output voltage(V)
250-750VDC
Rated output Power
75KW
Output current (A)
0 -150A
Efficiency
95.5%
Connection standard
EN 61851-23/DIN70121 Combo Type 2
Plug Type
Combo 2
Charging Plug Quantity
2
Power factor (full load)
≥0.99
RFID-System
Visa/MasterCard(password required or not depends on the authority granted by the credit card issuing bank.)
HMI
Glare-free 7-inch touch screen,Display of the charging process
Protection
IP54
Visa/Master Card
Induction type IP54/Insertion type IP20
Communication Protocol
OCPP 2.0
Communication btw Charger&Vehicle
PLC
HMI
Touch screen
Communication btw Charger&Charger
Ethernet
Standards
IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
CE
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
