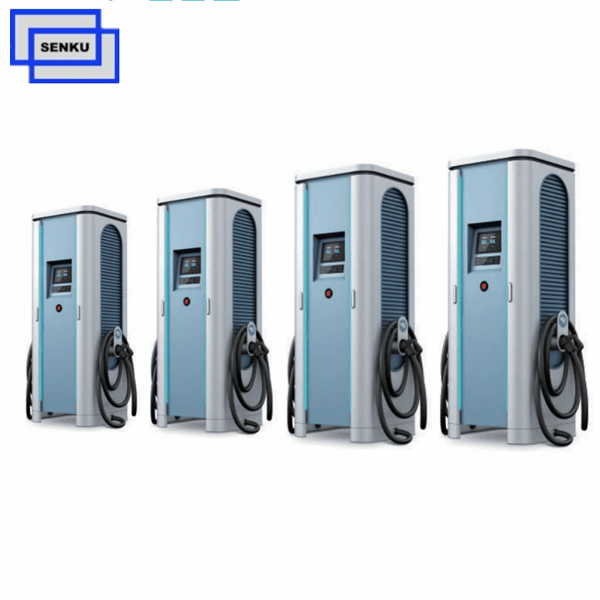

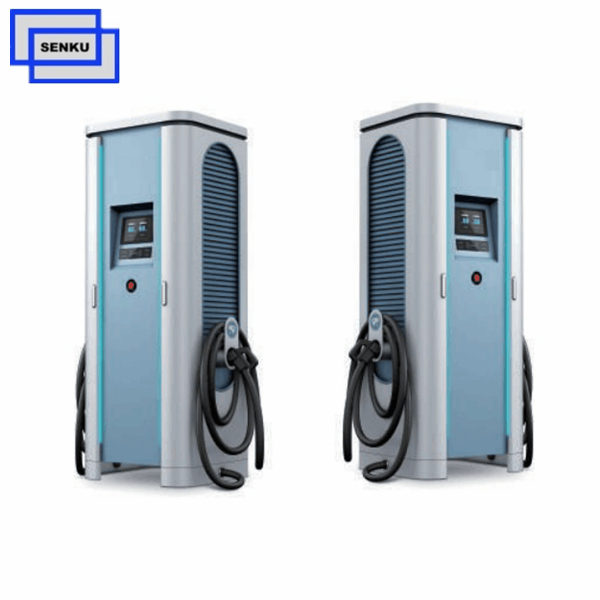

120KW CCS2 DC EV Charger
- Rated Voltage: AC400V±15%
- Rated output voltage(V): 250-750V
- Output Power: 120kW
- Output Current(A): 0~200A
- Product description: 1-The 120KW electric car fast charging stations has Multiple protections, including auto power off, overcharge protection and failure isolation, etc. 2- And the electric car fast charging stations su
Product introduction
1- The 120KW electirc car charging station meet europe standard interface, can charging all the CCS2 standard electric cars.
2- The 120KW electric car charging station with intelligent dual plug power offers dynamic allocation allowing charging of two electric vehicles at the same time, as well as super fast charging for one vehicles with two plug. Safe, reliable, efficient and convenient.
3- Applicable for Large electric bus stations, Expressway service areas, Company public charging, Hospital , Shoppinh malls, Electric car charging stations and other public places.
Charging Guns: 1/2 Option
OCPP: Support OCPP 2.0 and OCPP1.6
Certificate: TUV CE Certificate
Key Parameters
Electric Performance.
Line Voltage
AC 400V±10%
Frequency
50Hz ±10%
Voltage Type
3 Phase 3P + N + PE
Rated output voltage(V)
250-750VDC
Rated output Power
120KW
Output current (A)
0 -200A
Efficiency
95%
Connection standard
EN 61851-23/DIN70121 Combo Type 2
Plug Type
Combo -2 (CCS2)
Charging Plug Quantity
1 / 2 for option
(the charger with 2 charging plug, then the 2 charging plug can use at the same time)
Power factor (full load)
≥0.99
HMI
Glare-free 7-inch touch screen,Display of the charging process
Protection
IP54
Payment method
RFID Card / APP / Credit Card (Option)
Communication Protocol
OCPP 2.0
(Easy to connected to the customer back-end / APP, support the OCPP 1.6 AND OCPP 2.0 back-end/ APP)
Communication btw Charger&Vehicle
PLC
Communication btw Charger&back-end
Ethernet (Standard), 3G/4G (Option)
Standards
IEC 62196-1/2, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
