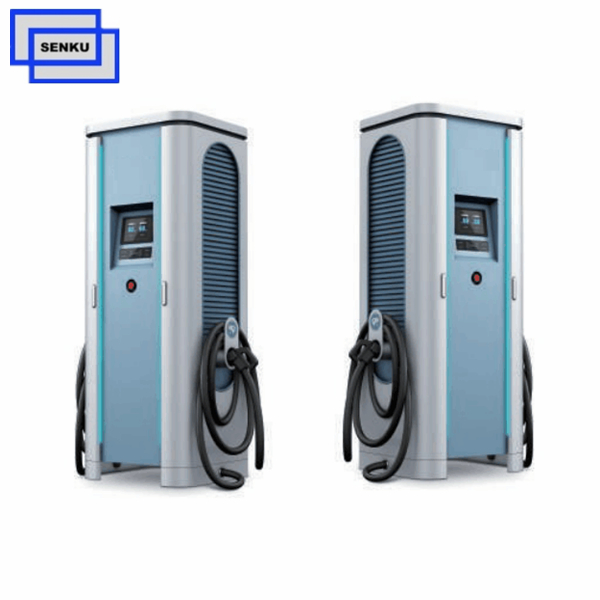

150KW CCS2 DC EV Charger
- Rated Voltage: AC 400V±10%; 50Hz±5%
- Rated output voltage(V): 250-750V
- Output Power: 150kW
- Output Current(A): 0~200A
- Product description: 1- Meet the European charging standards for new energy vehicles. 2-Offering 250-750V wide output voltage range. 3-With OCPP 2.0, easy connected to customer back-end/APP. 4- Remote control, manage,

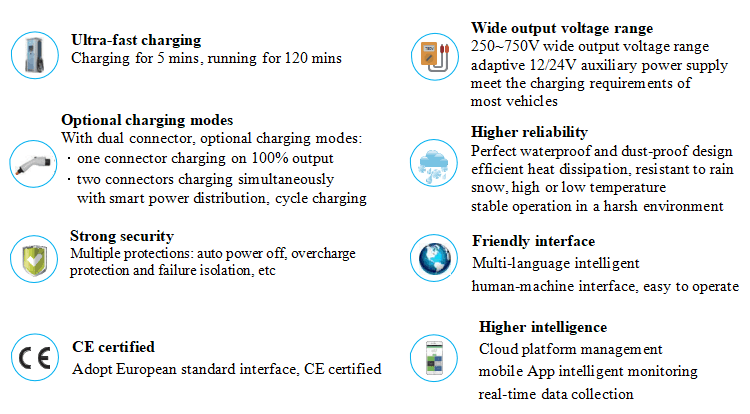

Product introduction

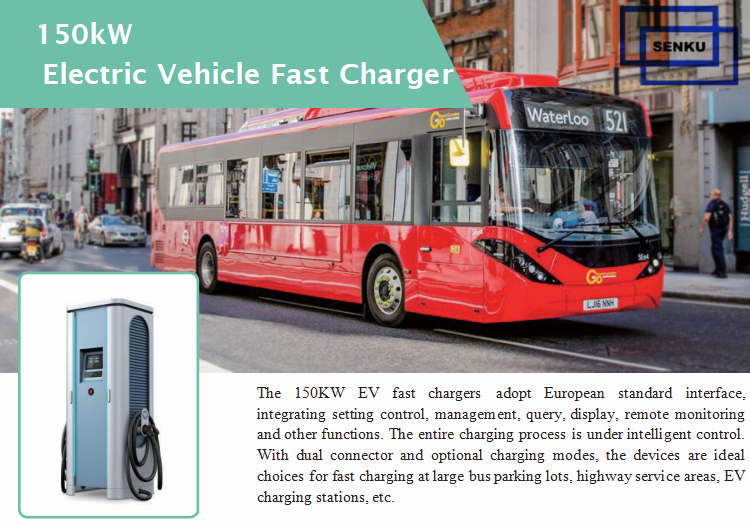

1. The 150KW CCS2 charging station with European standard interface, setting control, management, query, display and other functions, all in one device. The entire charging process is under intelligent control.
2. Offering 250-750V wide output voltage range. The 150KW CCS2 charging station Innovative highlights Super fast charge: Charge for 5 minutes, can run a vehicle for 120 minutes.
3. The charger with Intelligent power distribution: Single plug output 100%, double plug used at the same time charges an average of 50% per plug Cycle charge: single plug output at maximum power, automatically switched.
4. Remote monitoring. The 150KW CCS2 charging station Supports Ethernet, 3G / 4G communication interface, and with OCPP 2.0 protocol, easy connected to customer back-end/APP, to achieve network monitoring of charger operation.
5. The 150KW CCS2 charging station With TUV CE Certificate.It is safe, reliable, efficient and convenient.
6. Applicable for large electric bus stations, expressway service areas, electric car charging stations and other places. Suitable for all CCS2 types of electric vehicles capable of DC fast charge.
Charging Guns: 1/2//4 for Option
OCPP: Support OCPP 2.0
Certificate: TUV CE Certificate
Key Parameters
Electric Performance.
Line Voltage
AC 400V±10%
Frequency
50Hz ±10%
Voltage Type
3 Phase 3P + N + PE
Rated output voltage(V)
250-750VDC
Rated output Power
150KW
Output current (A)
0 -200A
Efficiency
95.5%
Plug Type
Combo 2 (CCS2)
Charging Plug Quantity
1 OR 2
Power factor (full load)
≥0.99
Payment method
RFID Card / APP / Credit Card (Option)
HMI
Glare-free 7-inch touch screen,
Display of the charging process
Protection
IP54
Visa/Master Card
Induction type IP54/Insertion type IP20
Communication Protocol
OCPP2.0
Esay to connected to the customer back-end to achieve remote control
Communication btw Charger&Vehicle
PLC
Communication btw Charger&Back-end
Ethernet (Standard) / 3G,4G (Optional)
Standards
IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE Certificated
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
