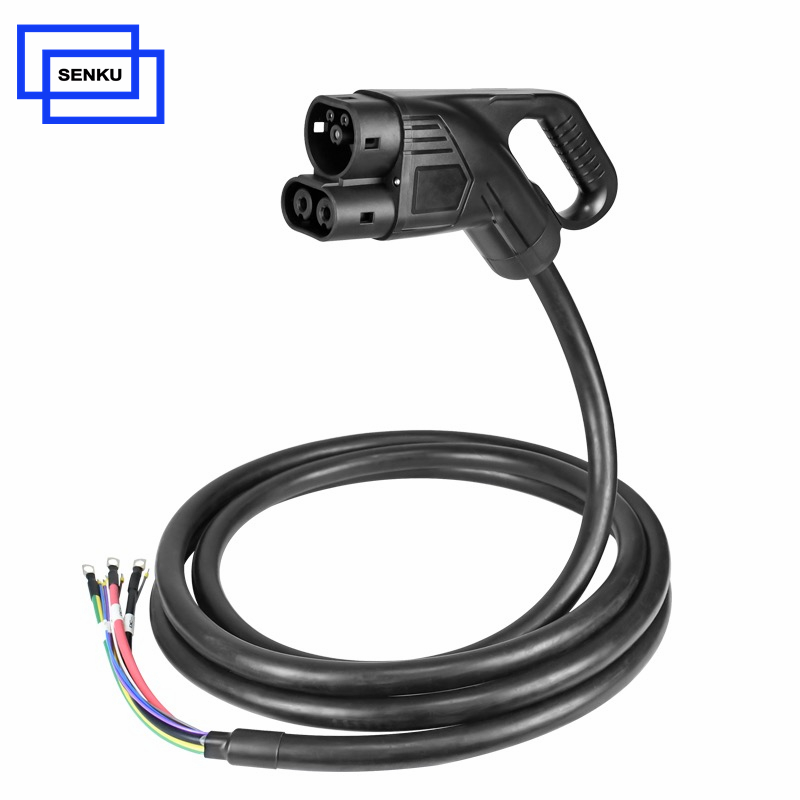

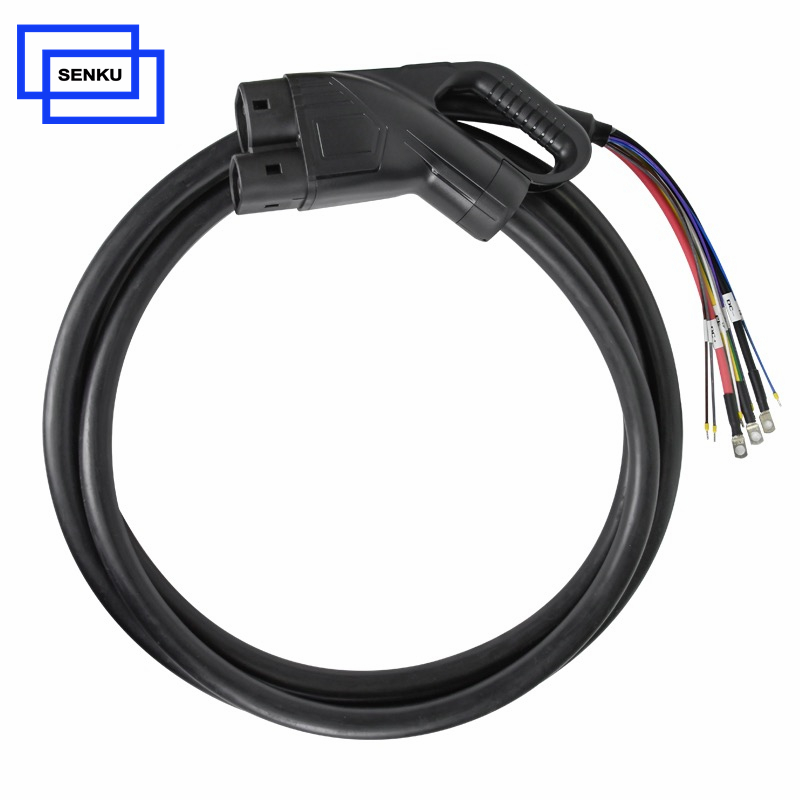

250A Combo 2 EV Charging Plug
- Rated Current: 250A
- Rated Voltage: 1000V DC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: This 250A CCS2 EV charging plug is use to install on electric vehicle DC charging station as charging outlet; This plug is TUV CE certificated which is reliable and safety to use;
Product introduction
The vehicle coupler is composed of the vehicle connector, which is mounted at the end of a flexible cable, and the vehicle inlet, the counterpart of the connector, which is located within the vehicle.
This 250A CCS2 EV charging plug is use to install on electric vehicle DC charging station as charging outlet; This plug is TUV CE certificated which is reliable and safety to use;
Electric Performance. | |
Rated current | 250A |
Operate voltage | 1000V DC |
Insulation resistance | >2000MΩ (DC1000V) |
Terminal temperature rise. | <50K |
Withstand Voltage | 3000V |
Contact Resistance | 0.5 megohm |
Mechanical life | no-load plug in / plug out > 10000 times |
Materia | Thermoplastic, Flame retardant grade UL94-0; |
Pin: Cooper alloy,sliver + thermoplastic on the top | |
Operation Temp. | -30℃ ~ + 50℃ |
IP protection class | IP 55 |
Standard | IEC 62196-1 IEC 62196-3 |
Certifications | TUV CE |

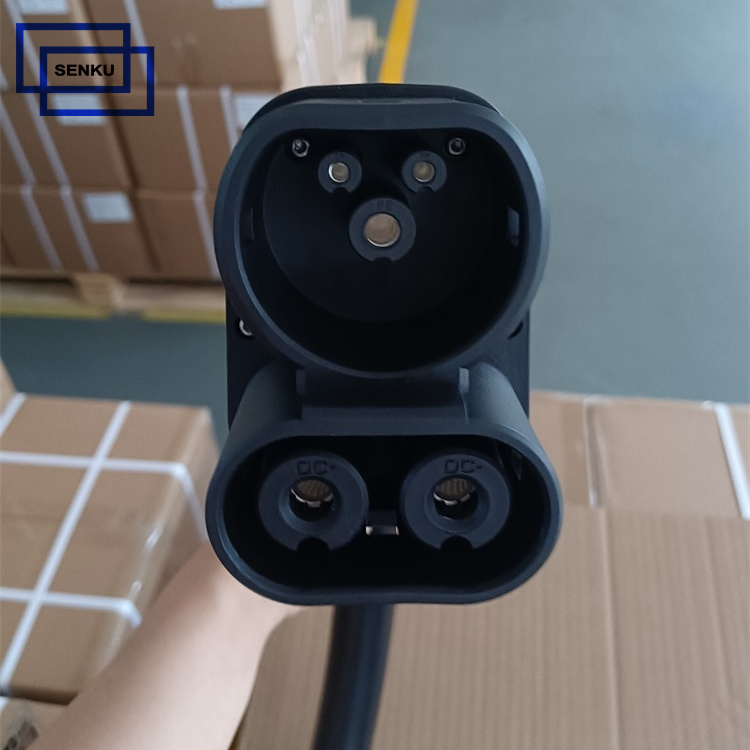

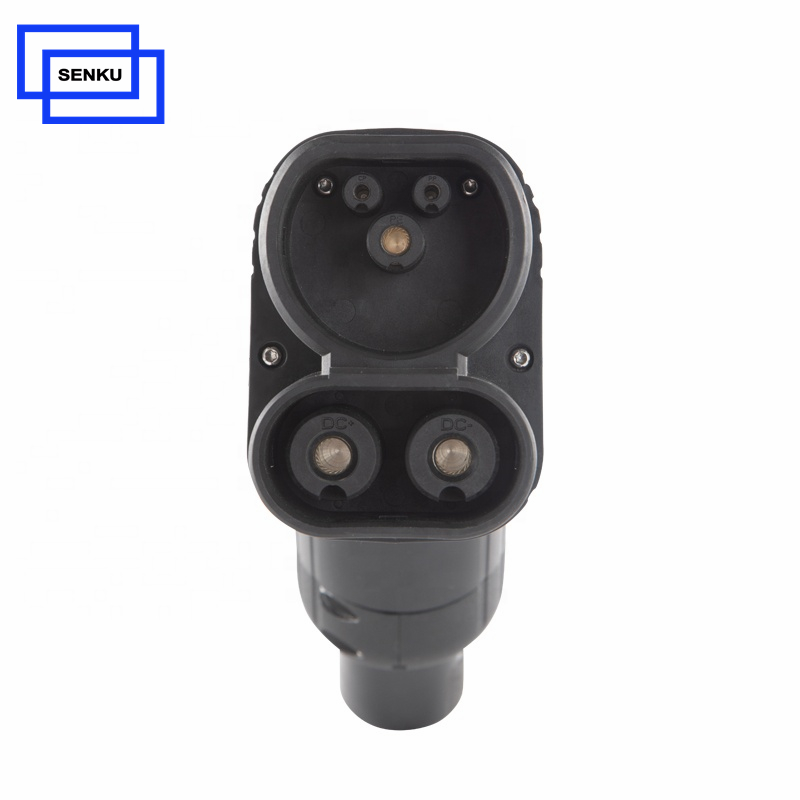

The CCS2 EV charging plug contains five contact pins: two small contacts and three large contacts.
The top two small contacts for signals, the middle pin is used for grounding, and the bottom two pins are used for power supply.
Proximity pilot (PP): pre-insertion signalling
Control pilot (CP): post-insertion signalling
Protective earth (PE): full-current protective earthing
Power supply positive (DC+)
The 250A EV charging cable shall be protected with bubble bags, then loaded into cartons, and then palletized; The carton pattern or packing mark can be done according to the customer's requirements
